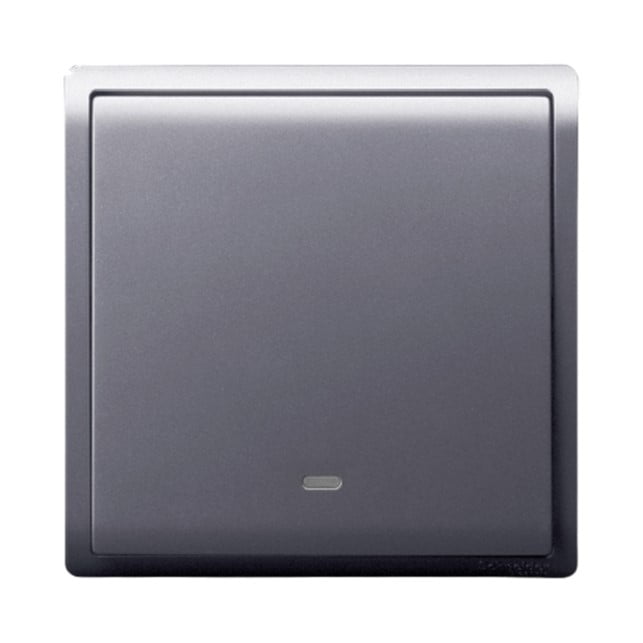

SAKLAR SINGLE PIENO SCHNEIDER E8231L1F_LS 1G 1W FLUO LAVENDER SILVER
Rp1.011.904
Deskripsi
Specifications
| range | Pieno |
|---|---|
| product or component type | Switch |
| device application | Control |
| switch application | Switch |
| load type | Fluorescent Resistive |
| cover frame colour tint | Lavender silver |
| device mounting | Flush Surface |
|---|---|
| wiring device mounting | Flush Surface |
| switch function | 1-way |
| rated current | 16 AX at 250 V AC 50 Hz |
| local signalling | Fluorescent (white) |
| number of gangs | 1 gang |
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections – terminals | Pillar terminals |
| clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| embedding depth | 23 mm |
| width | 87 mm |
| height | 87 mm |
| depth | 23 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | SS 227-1 MS IEC 60669-1 IEC 60669-1 BS EN 60669-1 GB 16915.1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 89.64 g |
| Package 1 Height | 3.6 cm |
| Package 1 width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 1600 |
| Package 2 Weight | 228920.0 g |
| Package 2 Height | 105 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 8 |
| Package 3 Weight | 1.144 kg |
| Package 3 Height | 9.5 cm |
| Package 3 width | 15 cm |
| Package 3 Length | 19 cm |
