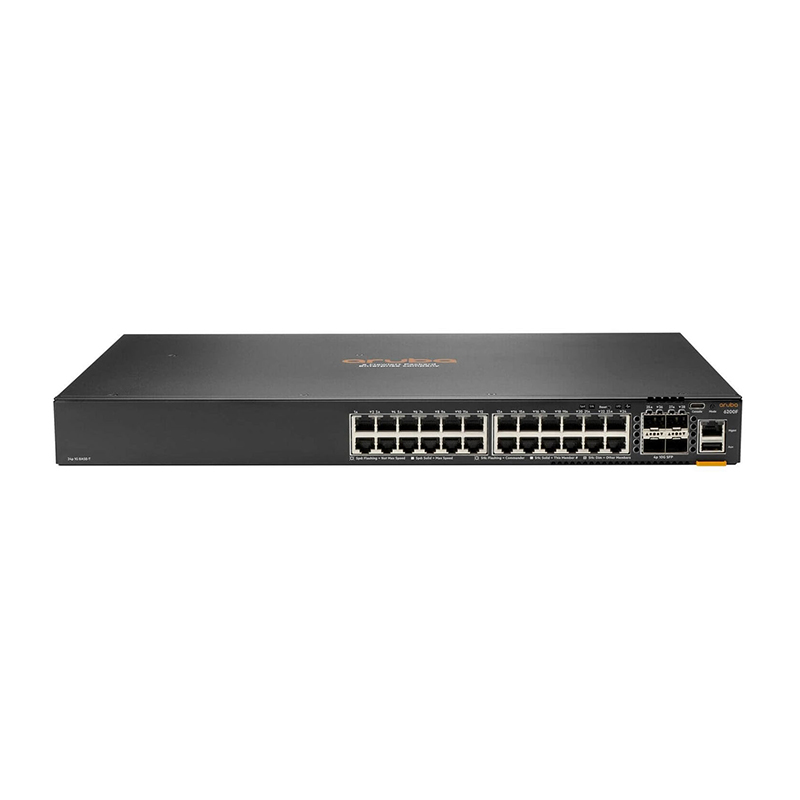

HPE Aruba Networking CX 6200M 24G Class4 PoE 4SFP+ Switch (R8Q68A)

Differentiator24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
Supports PoE Standards IEEE 802.3af, 802.3at
1x RJ-45 Console Port 1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
2 field-replaceable, hot-swappable power supply slots, 1 power supply required (ordered separately) Supports PSU JL086A JL087A
Switch has two fan tray slots; Switch includes one fan tray. Fan trays are field replaceable and hot- swappable.

Power consumption76W at 230 VAC

Input voltage100V-120V/200V-240V

Ports24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
Supports PoE Standards IEEE 802.3af, 802.3at
1x RJ-45 Console Port
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port

Latency1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec

Routing/switching capacity128 Gbps

Stacking capabilities8 members

ThroughputUp to 95.2 Mpps

Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC

Power supply name2 field-replaceable, hotswappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs
JL086A
JL087A
Max PoE Power: 740W

PoE capability740W

Warranty Limited lifetime warranty.

Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.

Weight6.01 kg (13.25 lbs)

Dimensions4.39 x 44.247 x 38.38 cm (1.73 x 17.42 x 15.11 in)
