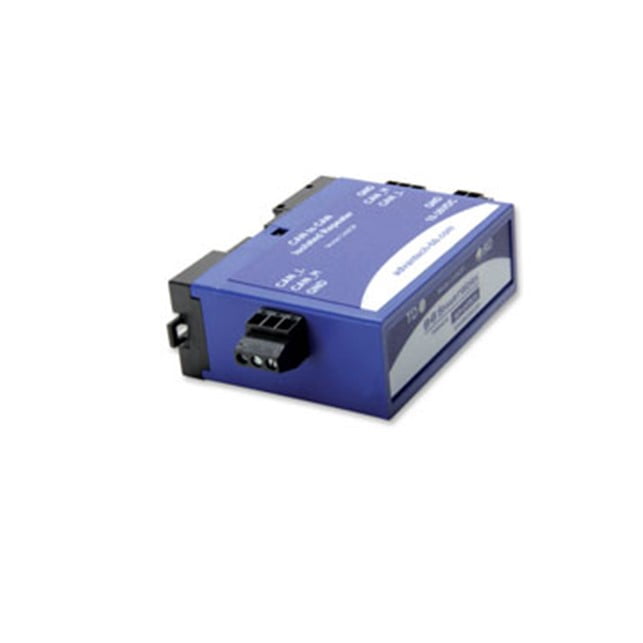

Advantech ULI-238TS – CAN (Control Area Network) Optical Isolator / Repeater. Terminal Block Connnectors (BB-CANOP)
Rp4.624.704
- Boost signals and increase node capacity of CAN networks
- Works with various CAN protocols and frame lengths
- 2,000V optical isolation protection from surges and spikes
- Data rate: up to 250 kbps (bit-wise enable)
- Terminal block CAN connections (copper)
- DIN rail mount enclosure – ideal for industrial cabinets
- 10-30 VDC external power required (not included, sold separately)
Deskripsi
| Category | Attribute | Value |
| General | Technology | Serial |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Protection | Isolation | 2,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 250 Kbps |
| Serial Communication | Serial Port Connector Type | Terminal block |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | Serial Standard | CAN |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | Inline |
Informasi Tambahan
| Brand |
Advantech |
|---|
