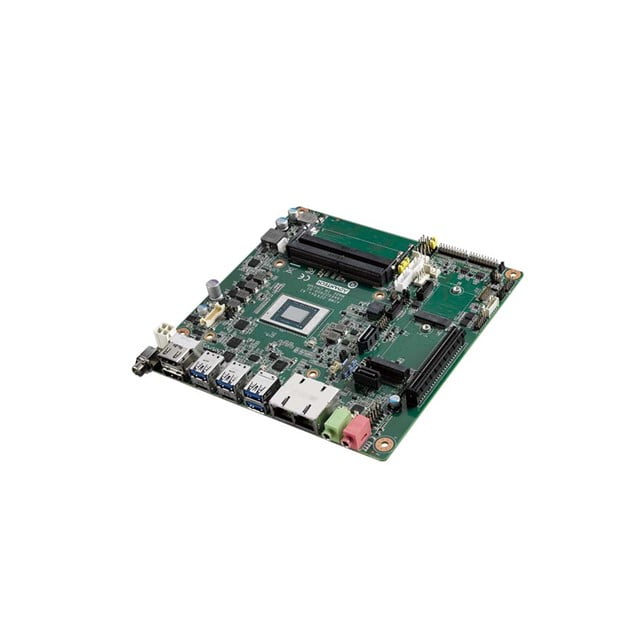

Advantech miniITX V2748 2HDMI/2DP/8USB/6COM/2Gb/2M.2 (AIMB-229VG2-00A1E)

SKU: AIMB-229VG2-00A1E Kategori: Advantech, Boards & Cards, Industrial Motherboards, IoT / Industrial Tag: advantech

Deskripsi

Category	Attribute	Value
Display	Controller	AMD Integrated Vega GCN
Display	DP/HDMI	4DP
Display	LCD (TTL/LVDS/eDP)	LVDS: Dual channel 48-bit up to 1920 x 1200
Display	Multiple Display	Four outputs
I/O	COM Port	6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL)
I/O	GPIO	1, 16-bit GPIO
Memory	Max. Capacity	64GB (up to 32GB per SO-DIMM)
Memory	Socket	2 x 260 Pin DDR4 SO-DIMM
Memory	Technology	DDR4 3200MHz Non-ECC or ECC
Processor	BIOS	AMI 128Mbit SPI
Processor	CPU	AMD Ryzen™ Embedded V1000 processor
Processor	L2 Cache	4MB
Processor	Max Speed	3.8GHz
Storage	SATA	2 x SATA III (Max. Data Transfer Rate 600 MB/s)
Operating System	Microsoft Windows	Yes
Operating System	Ubuntu	V
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F)
Environment	Vibration Resistance	3.5 Grms (non OP)
Power	Connector	DC jack, internal 4pin
Power	Power Type	ATX, AT
Ethernet	Connector	RJ45 x 2
Ethernet	Controller	RTL8111H
Ethernet	Speed	10/ 100/ 1000 Mbps
Audio	Audio Interface	HD Audio
Audio	CODEC	Realtek ALC888S, High Definition Audio (HD)
Audio	Connector	2 (Line out, Mic In)
Environment	Temperature (Storage)	– 40 ~ 85° C (-40 ~185° F)
Rear I/O Interface	USB	4
Watchdog Timer	WatchDog Timer	Yes
Certification	EMC	CE, FCC
Expansion	PCI Express x 8	1
Expansion	Slots	1 x M.2 M key + 1 x M.2 E key
Physical	Construction	with CPU cooler design
Physical	Dimension (mm)	170x 170 mm (without heatsink)

Informasi Tambahan

Brand	Advantech
